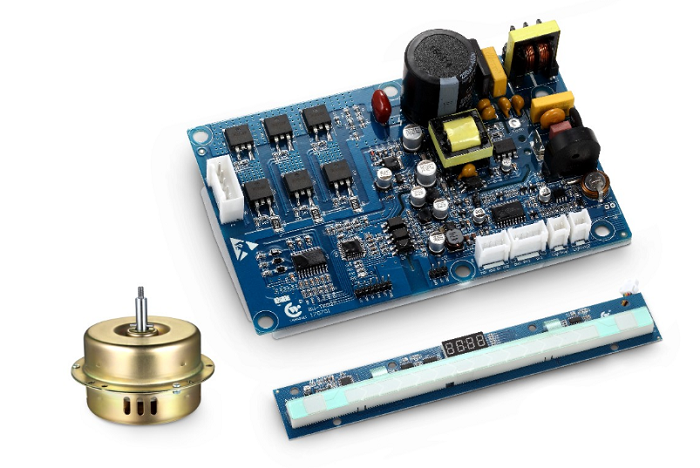

采用開關電源設計，集電源、點火、控制一體 Design with on/off power supply w, which is combines power supply, sparking and control together | 顯示操作器四線通信接口 Display operator with four-line connector |
定時關機、故障功能聲光報警; ( 以數碼顯示，指示燈、蜂鳴器實現報警提示) Failure warning function can be realized via sound-light alam (Failure warning cansists of display, indicator light, and buzzer) | 電容觸摸式按鍵輸入 Capacitive touch buttons |
多路控制信號檢測輸入;氣敏傳感器信號、熱敏傳感器信號、防火傳感器信號 Muti-channel signal detection input including gas sensor signal, themal sensor signal and firewall sensor signal | 適用于200W以內的變頻直流煙機 Apply for inverted frequency DC ventilation within 200w |
無線煙灶聯動打模塊輸出(預留) Acliwale the kitchen ventlatr once it gets the on-off signal from cooker（optional） |
額定工作電壓: AC 220V Nominal working voltage : AC 220V | 驅動一個DC310V直流變頻電機輸出 Aclive output of a DC310V DC inverted frequency motor | LED照明:DC12V 4W LED lightning function : DC12V 4W |
工作電壓范圍: AC 176V-264V Working voltage range : AC 176V~264V | 驅動兩路DC 12V/LED照明輸出 Activate DC12V output or two- channel lighting output | |
直流變頻電機: DC 310V ≤200W DC inverted frequency motor | 傳感器: (可根據客戶需求調整) According ciustomer requirement, sensor can be added for this design |
